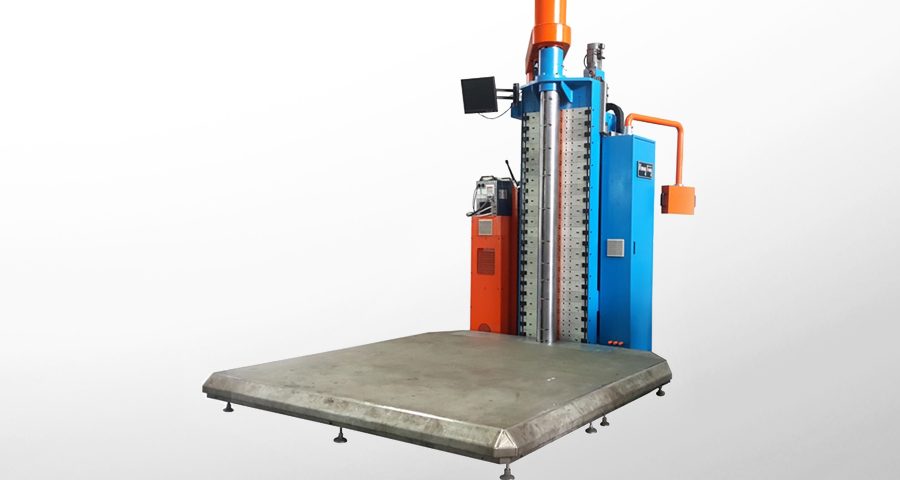

Linearweld VCTL
Linearweld VCTL
? With touch screen + HMI
? With remote controller
The unit can save labor and speed up the productivity. High quality and easy operation.
Applications
Welding round and square tube Recommend welding machine: TIG Argon welder| Product | UNIT | SLH-12 | SLH-16 | SLH-18 | SLH-21 |
| Product | - | 3 PHASE 220V/380V 50/60Hz | |||
| Available object thickness | mm | 0.6-3mm | |||
| Moving accuracy | mm | ±0.5 | |||
| Speed range | mm/min | 50-1200 | |||
| Table moving | - | Liner way ball screws | |||
| Machine height | mm | 2050 | 2500 | 2850 | 3600 |
| Machine width | mm | 2400 | 2400 | 2400 | 2600 |
| Machine length | mm | 3200 | 3200 | 3200 | 3600 |
| Min object ID | mm | 100 | 200 | 200 | 200 |
| Max object OD | mm | 2500 | 2500 | 3000 | 300 |
| Available stroke | mm | 1250 | 1550 | 1850 | 2150 |
| Table width | mm | 180 | 180 | 180 | 180 |
| Table height | mm | 300 | 300 | 300 | 300 |
| Table depth | mm | 2400 | 2400 | 2400 | 2400 |
